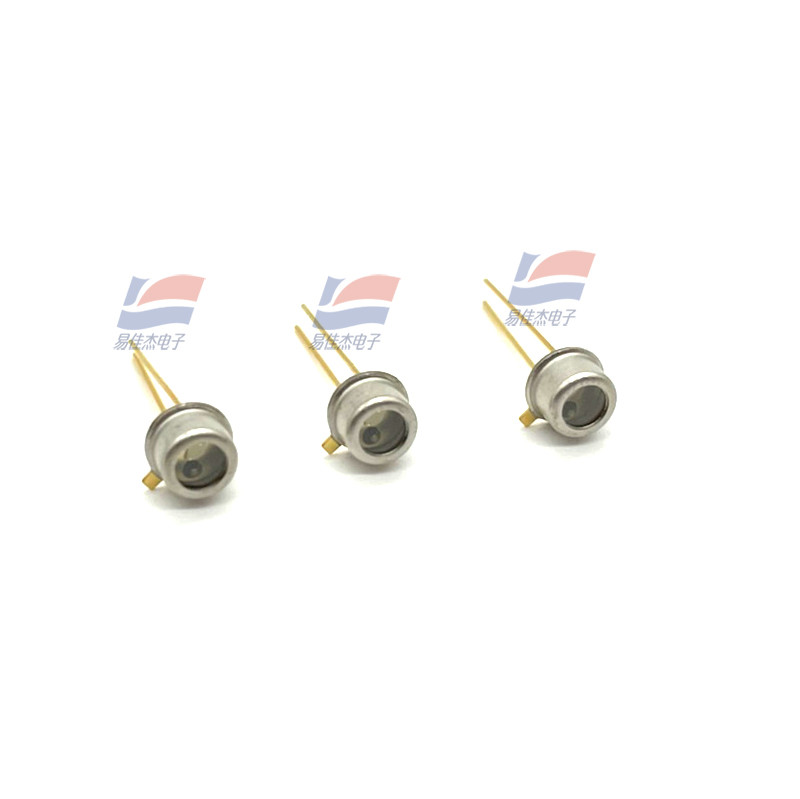

Sapphire Window UV Photodiode Sensor For UV Photocatalytic Monitoring

Brand Name : Uv

Model Number : GT-UV400-L

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000/pcs/month

Delivery Time : 3-5work days

Packaging Details : Tubes of

Chip size : 1 mm2

encapsulation : TO46

Features : Sapphire window, high sensitivity, low dark current

response wavelength is : 200-400 nm

Contact Now

Product Description:

GT-UV400-L GaN UV Sensor For UV Photocatalytic Monitoring

Features:

General Features: l Indium Gallium Nitride Based Material l Photovoltaic mode operation l TO-46 metal housing l High responsivity and low dark current Applications: UV LED Monitoring, UV radiation dose measurement, UV Curing Specifications: Parameters Symbol Value Unit Maximum ratings Operation temperature range Topt -25-85 oC Storage temperature range Tsto -40-85 oC Soldering temperature (3 s) Tsol 260 oC Reverse voltage Vr-max -10 V General characteristics (25 oC) Chip size A 1 mm2 Dark current (Vr = -5 V) Id

<1 nA Temperature coefficient Tc 0.05 %/ oC Capacitance (at 0 V and 1 MHz) Cp 60 pF >

Specifications:

Wavelength of peak responsivisity	λ p 375 nm
Peak responsivisity (at 385 nm)	Rmax 0.243 A/W
Spectral response range (R=0.1×Rmax)	200-400 nm
UV-visible rejection ratio (Rmax/R450 nm)	- >104 -

Sapphire Window UV Photodiode Sensor For UV Photocatalytic Monitoring
