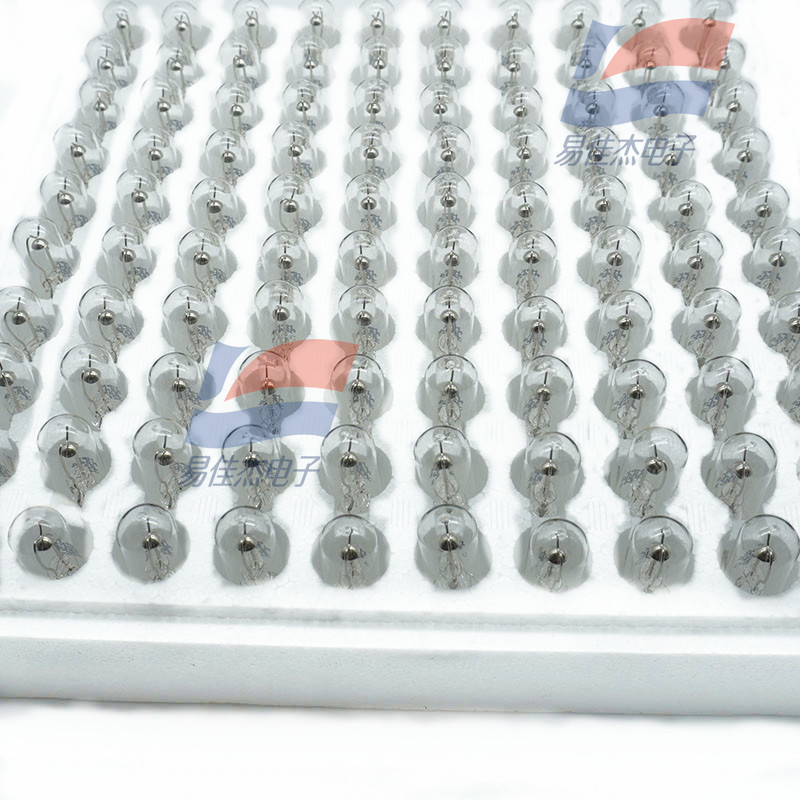

R244 UVTron Flame Sensor High Speed Flexible Leads Electrical Discharges Bioler Combustion Monitoring

Product Categories

ShenzhenYijiajie Electronic Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Model Number : R244

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000

Delivery Time : 5-8workingdays

Packaging Details : Standard Packing

Spectral response range : 185 to 260 nm

Supply voltage (DC) : 500 ± 50V

Average discharge current : 0.3mA

Quenching time : 3mS

Contact Now

R244 UVTron Flame Sensor High Speed Flexible Leads Electrical Discharges Bioler Combustion Monitoring

Features
• Solar blind spectral response
• Head-on
• Flexible leads

Applications
• Boiler combustion monitoring

Datasheet:

Discharge starting voltage (DC) Max	440V
Discharge sustaining voltage (DC) Type	330V
Sensitivity(Type)	480min
Background(Max)	5min
Estimated life	25000 h

R244 UVTron Flame Sensor High Speed Flexible Leads Electrical Discharges Bioler Combustion Monitoring
