AD045-H04 A3STF 4-Electrode Electrochemical SO2 Gas Sensor with 0.60 ± 0.12 μA/ppm Sensitivity and 40 seconds Response Time T90

Model Number : A3STF

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5 work days

Measurement Range : 0-10 ppm SO2

Maximum Overload : 100 ppm

Filter : To remove H2S and HCl

Sensitivity* : 0.60 ± 0.12 μA/ppm

Response Time (T90)* : < 40 seconds

Baseline Offset (clean air)* : 0 to 0.1 ppm equivalent

Contact Now

A3STF 4-Electrode Electrochemical Sulfur Dioxide (SO2) Gas Sensor Part Number: AD045-H04 Electrical Connection Via PCB Pins Or Solder Tags



Key Features & Benefits:

• 4th electrode for compensation of environmental changes
• Electrical connection via PCB pins or solder tags



IMPORTANT NOTE:

Connection should be made
via PCB sockets only. Soldering to the pins will
seriously damage your sensor.



Recommended Load Resistor 10 Ω
Weight 22 g nominal
Housing Material Polycarbonate
Pin Material Mild steel with gold flash over nickel plate
Typical Applications Ambient Environmental Monitoring
Operating Temperature Range -20°C to +50°C
Recommended Storage Temp 0°C to 20°C
Operating Pressure Range Atmospheric ± 10%



AD045-H04 A3STF 4-Electrode Electrochemical SO2 Gas Sensor with 0.60 ± 0.12 μA/ppm Sensitivity and 40 seconds Response Time T90


Product Tags:

4-Electrode Electrochemical SO2 Gas Sensor



AD045-H04 SO2 Gas Sensor


Buy cheap AD045-H04 A3STF 4-Electrode Electrochemical SO2 Gas Sensor with 0.60 ± 0.12 μA/ppm Sensitivity and 40 seconds Response Time T90 product

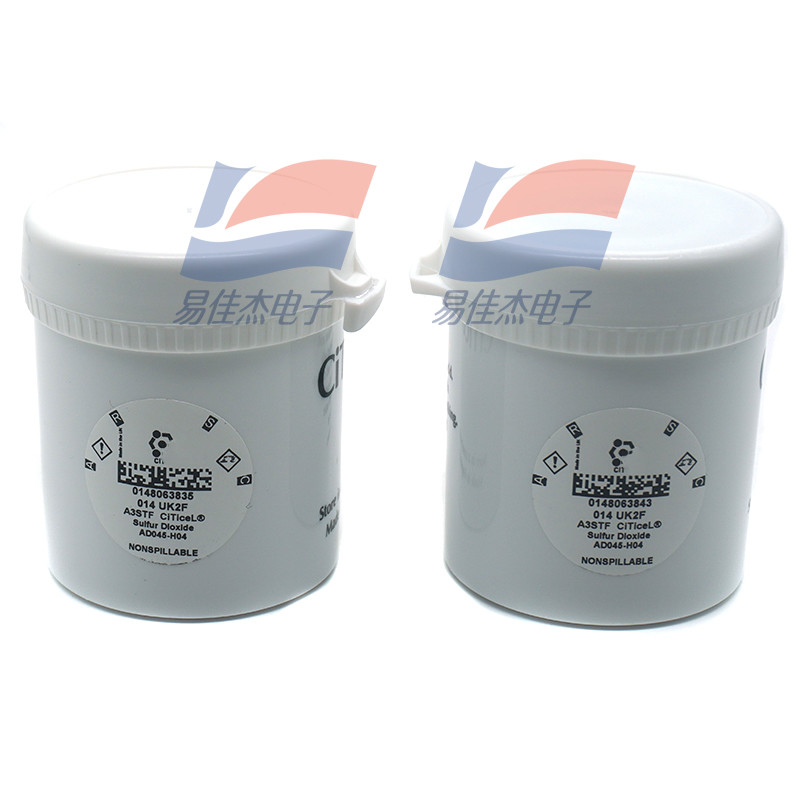

AD045-H04 A3STF 4-Electrode Electrochemical SO2 Gas Sensor with 0.60 ± 0.12 μA/ppm Sensitivity and 40 seconds Response Time T90 Images
