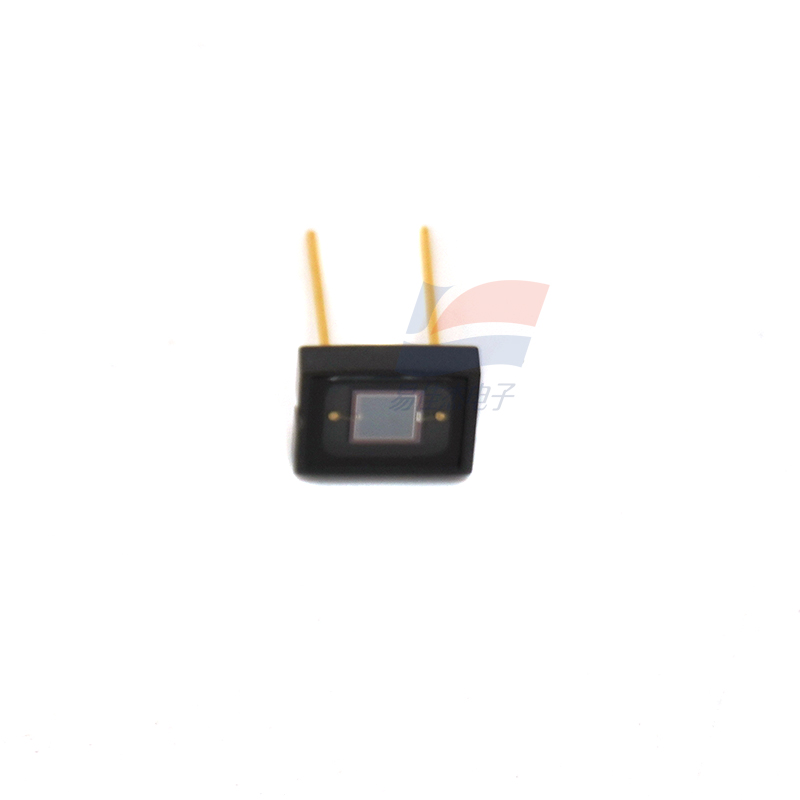

YJJ S1227-33BR Silicone Photodiode Resin Potting Model Is Suitable For Precision Photometry From Ultraviolet To Visible Light

Brand Name : HAMAMATSU

Model Number : S1227-33BR

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2200

Delivery Time : 3 days

Packaging Details : piping

Receiving surface : 2.4 × 2.4 mm

Package : Ceramic

Refrigeration : Uncooled type

Reverse voltage (Max.) : 5V

Contact Now

Product Description:

S1227-33BR Silicone Photodiode Resin Potting Model Is Suitable For Precision Photometry From Ultraviolet To Visible Light



Features:

Receiving surface 2.4 × 2.4 mm

Encapsulated ceramics

Package category --

Refrigeration uncooled type

Reverse voltage (Max.) 5 V

Spectral response range 340 to 1000 nm

Maximum sensitivity wavelength (typical value) 720 nm

Photosensitivity (typical value) 0.43 A/W

Dark current (Max.) 5 pA

Rise time (typical value) 0.5μs

Junction capacitance (typical) 160 pF

Noise equivalent power (typical value) 2.1×10-15 W/Hz1/2

Typical values of measurement conditions Ta=25°C, photosensitivity: λ = 720 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated



Specifications:

Spectral response range 340 to 1000 nm
Maximum sensitivity wavelength (typical value) 720 nm
Photosensitivity (typical value) 0.43A /W
Dark current (Max.) 5 pA
