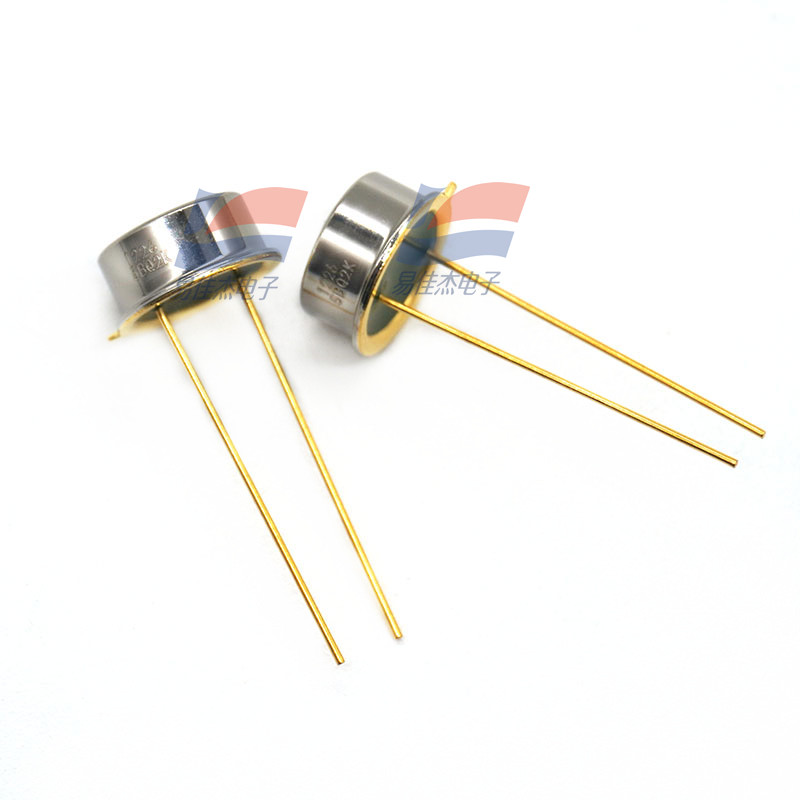

YJJ S1226-5BK High UV Sensitivity Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light

Brand Name : HAMAMATSU

Model Number : S1226-5BK

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2200

Delivery Time : 3 days

Packaging Details : piping

Receiving surface : 2.4 × 2.4 mm

Package category : TO-5

Reverse voltage (Max.) : 5 V

Dark current (Max.) : 5 pA

Contact Now

Product Description:

S1226-5BK High UV Sensitivity Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light



Features:

Receiving surface 2.4 × 2.4 mm

Encapsulation metal

Package category TO-5

Refrigeration uncooled type

Reverse voltage (Max.) 5 V

Spectral response range 320 to 1000 nm

Maximum sensitivity wavelength (typical value) 720 nm

Photosensitivity (typical value) 0.36A /W

Dark current (Max.) 5 pA

Rise time (typical value) 0.5μs

Junction capacitance (typical) 160 pF

Noise equivalent power (typical value) 2.5×10-15 W/Hz1/2

Measurement conditions Ta = 25°C, typical value, sensitivity: λ = 720 nm, dark current: VR = 10 mV, junction capacitance: VR = 0 V, f = 10 kHz, unless otherwise stated



Specifications:

Spectral response range 320 to 1000 nm
Maximum sensitivity wavelength (typical value) 720 nm
Photosensitivity (typical value) 0.36A /W
Dark current (Max.) 5 pA



YJJ S1226-5BK High UV Sensitivity Silicon Photodiode Is Suitable For Precision Photometry From Ultraviolet To Visible Light
