H2S-B1 H2S-BH H2S-B4 Electrochemistry Hydrogen Sulfide Sensor Two-year Life High Current Output For Stationary Hydrogen Sulfide Transmitter

Model Number : H2S-B1 H2S-BH H2S-B4

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5work days

Measuring range : 50ppm

Sensitivity : 1400 ~ 2200nA/ppm

Response time : < 55s

Linearity range : 0~20ppm, full range linearity error -1 ~ -2ppm

Overload : 200ppm

Resolution : < 0.02ppm

Contact Now

H2S-B1 H2S-BH H2S-B4 Electrochemistry Hydrogen Sulfide Sensor Two-year Life High Current Output For Stationary Hydrogen Sulfide Transmitter



PERFORMANCE:

Sensitivity nA/ppm in 20ppm H2S 300 to 440
Response time t90 (s) from zero to 20ppm H2S < 35
Zero current ppm equivalent in zero air < ± 0.2
Resolution RMS noise (ppm equivalent) < 0.1
Range ppm H2S limit of performance warranty 200
Linearity ppm error at full scale, linear at zero and 20ppm H2S 1 to -8
Overgas range maximum ppm for stable response to gas pulse 500



LIFETIME :

Zero drift ppm equivalent change/year in lab air < 0.05
Sensitivity drift % change/year in lab air, monthly test < 2
Operating life months until 80% original signal (24 month warranted) > 24



ENVIRONMENTAL :

Sensitivity @ -20°C % (output @ -20°C/output @ 20°C) @ 20ppm 83 to 93
Sensitivity @ 50°C % (output @ 50°C/output @ 20°C) @ 20ppm 102 to 110
Zero @ -20°C ppm equivalent change from 20°C < ± 1
Zero @ 50°C ppm equivalent change from 20°C < ± 1



Size Φ32.3*16.5
Service life 2 years
Storage period 6 months
Operating temperature -30 ~ 50℃
Working humidity 15 ~ 90%RH



H2S-B1 H2S-BH H2S-B4 Electrochemistry Hydrogen Sulfide Sensor Two-year Life High Current Output For Stationary Hydrogen Sulfide TransmitterH2S-B1 H2S-BH H2S-B4 Electrochemistry Hydrogen Sulfide Sensor Two-year Life High Current Output For Stationary Hydrogen Sulfide TransmitterH2S-B1 H2S-BH H2S-B4 Electrochemistry Hydrogen Sulfide Sensor Two-year Life High Current Output For Stationary Hydrogen Sulfide Transmitter




Product Tags:

Electrochemistry Hydrogen Sulfide Sensor



Stationary Hydrogen Sulfide Sensor


Buy cheap H2S-B1 H2S-BH H2S-B4 Electrochemistry Hydrogen Sulfide Sensor Two-year Life High Current Output For Stationary Hydrogen Sulfide Transmitter product

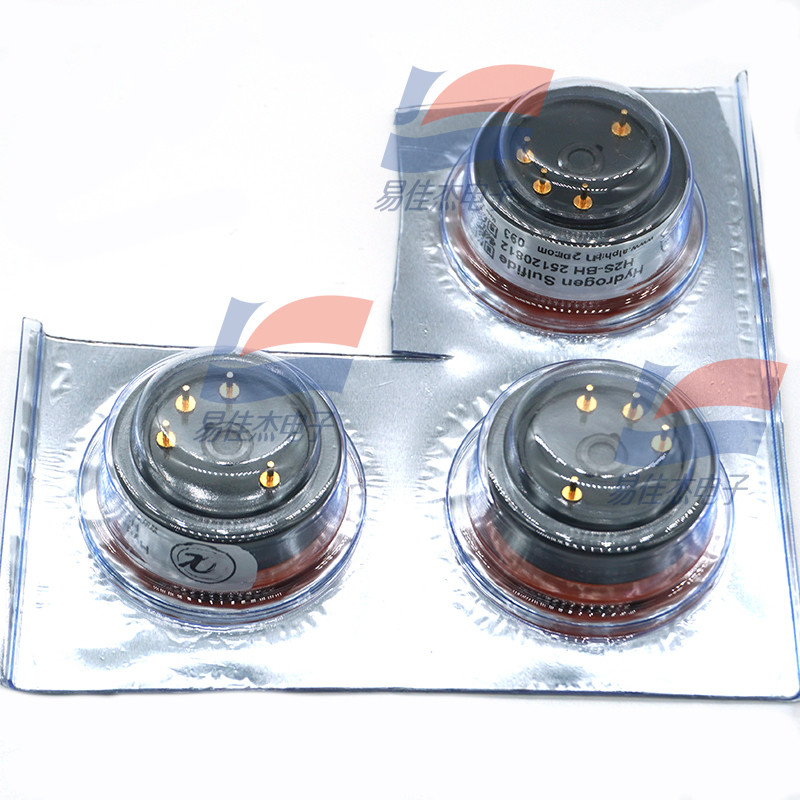

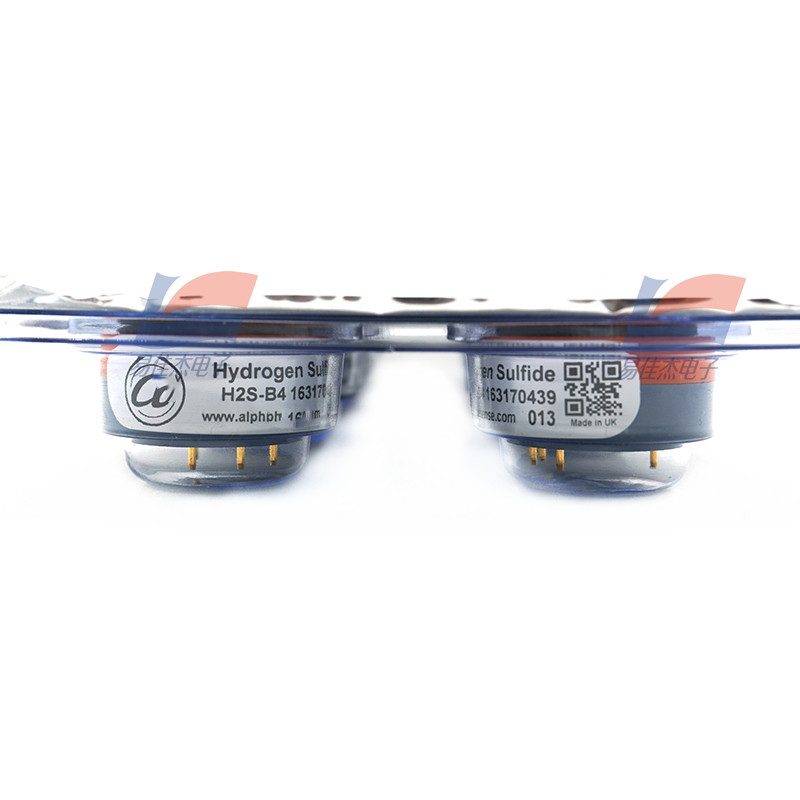

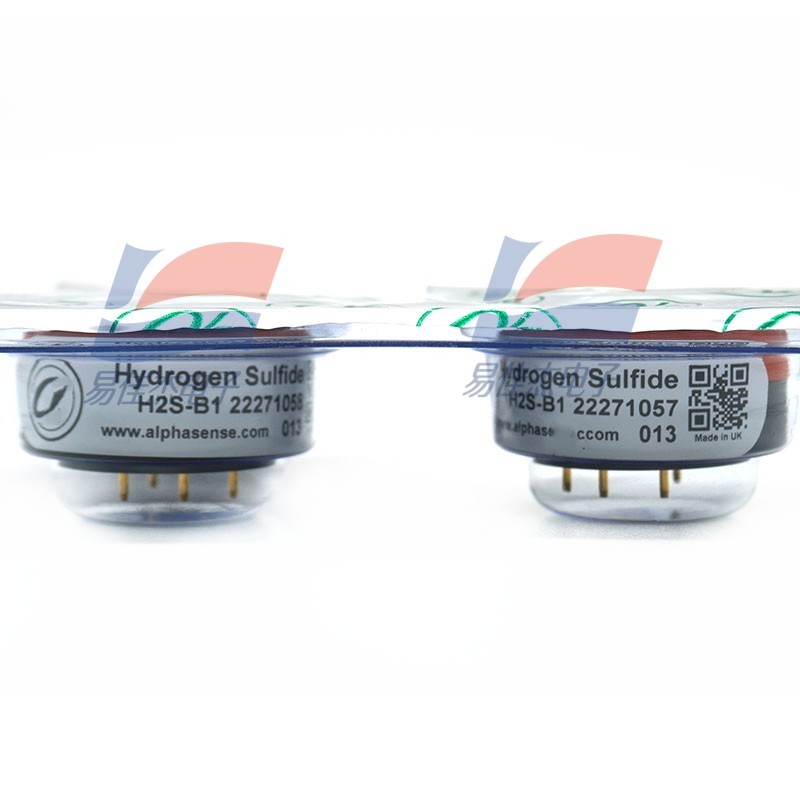

H2S-B1 H2S-BH H2S-B4 Electrochemistry Hydrogen Sulfide Sensor Two-year Life High Current Output For Stationary Hydrogen Sulfide Transmitter Images
