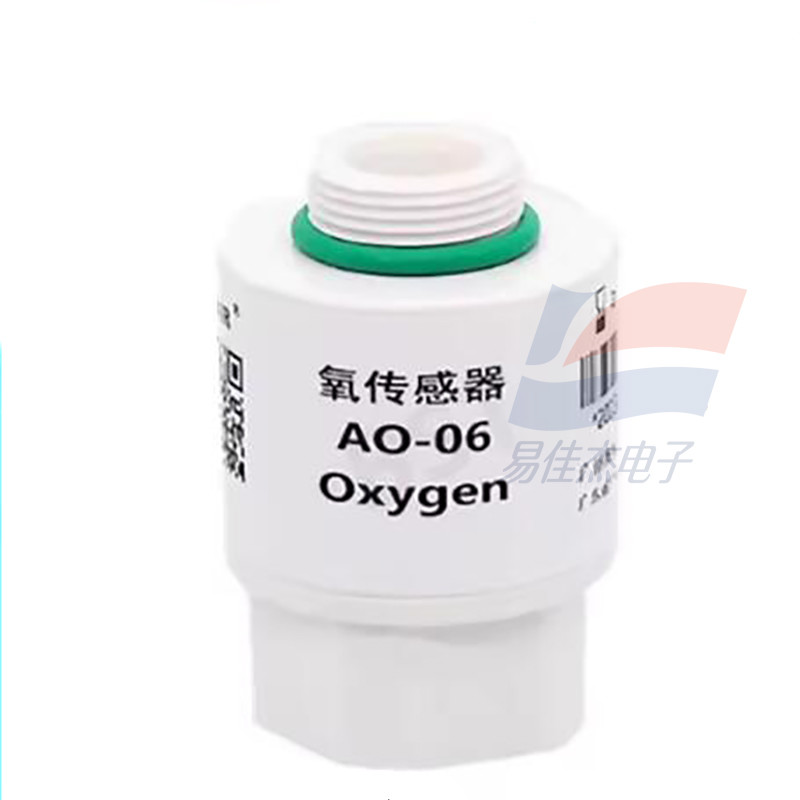

AO-06 Gas Sensor Detect Oxygen Concentration Medical Electrochemical Long Life And High Respond
1. Product Overview
AO-06 is an electrochemical oxygen sensor for measuring oxygen concentration, designed for medical equipment. The interface model of AO-06 oxygen sensor is 5520257-2. The sensor adopts a molded
design, fast response speed, long life, and can achieve domestic substitution. This sensor provides customers with excellent quality while reducing costs. The pin definition of AO-06 oxygen sensor and A0-07 oxygen sensor
is different.
2. Application
No external power supply is required to use AO-06. The sensor is calibrated before leaving the factory. To avoid temperature influence, the sensor has temperature compensation function. AO-06 can be used as a sensing element of oxygen analyzer, such as
a control element of hydrogen generator, medical ventilator, anesthesia equipment, and thermostat. 3. Product Features ·Linear output ·No external power supply required, ·Temperature compensation ·Accurate and reliable ·Fast response speed ·Anti-interference
Using A0-06 requires no external power supply. Sensors have been calibrated before leaving the factory. To avoid the influence of tempera-
ture, temperature compensation function is applied in sensors. A0-06 can be used as the sensing component in oxygen analyzer, such as con-
trol component in oxygen generator, medical ventilator, anesthesia equipment, incubator.

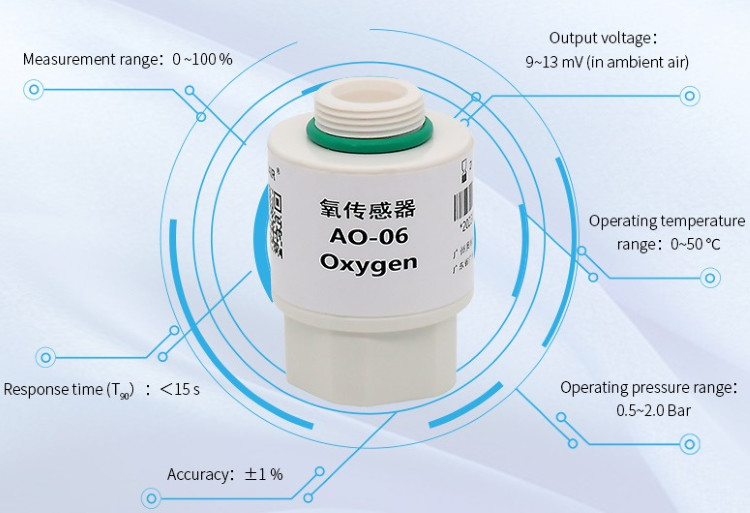

| Connector | P/N 5520257-2 |
| Housing material | White ABS |
| Weight | 40g(nominal) |
| Operating temperature range | 0~50°C |
| Operating pressure range | 0.5~2.0bar |
| Operating humidity range | 0~99%RH(non-condensing) |
| Long-term output drift in 100% 02 | <5%(voltage loss/year) |
| Expected operating life | 1.5 x 10³ % O, hours (20°C)
0.8 x 10s % O, hours (40°c) |
| Warranty | 13 months from date of dispatch |
